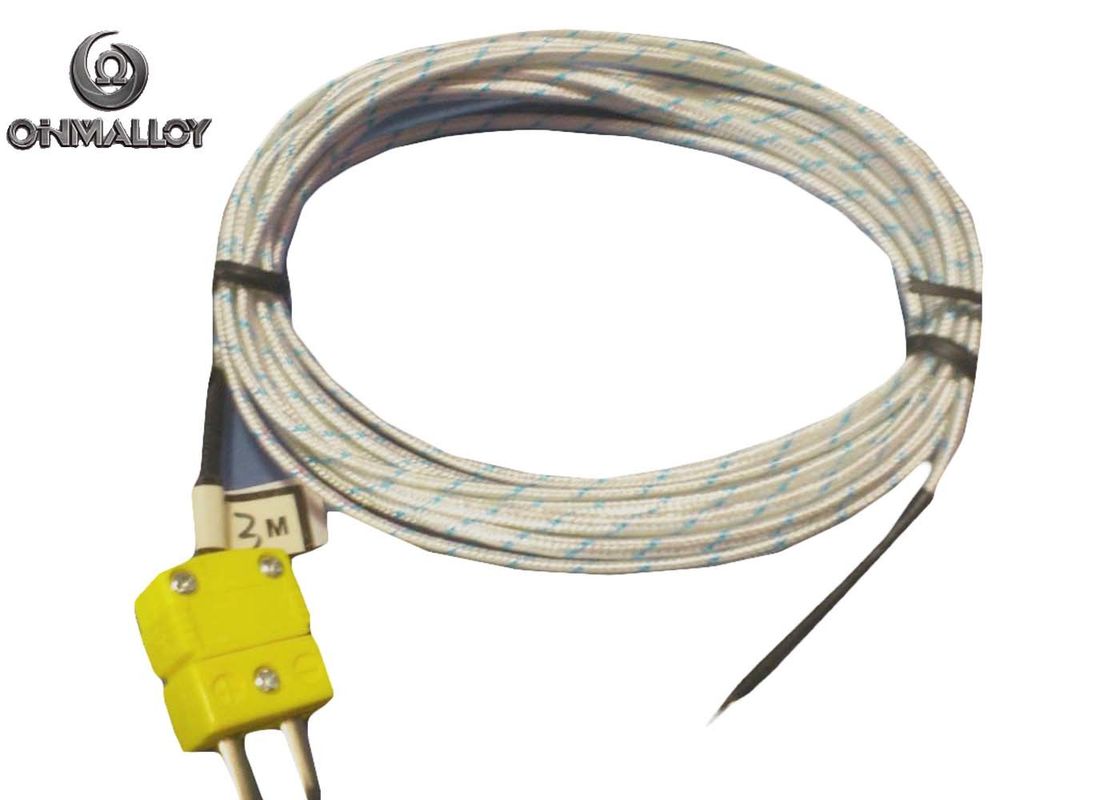

Industrial-Grade 316L Stainless Steel Overbraided Mineral Insulated Thermocouple
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| Name: | High Temperature Mineral Insulated Thermocouple with Extension Cable Plug Connector | Thermocouple Type: | Type K/ J/ T/ N/ S/ B/ PT100 |
|---|---|---|---|
| Sheath Material: | Stainless Steel/Inconel/GH3030/GH3039 | Extension Cable: | Customized According to the Specification |
| Connector: | Mini/Standard Size | Junction Box: | Customized According to the Specification |
| Tail Handling: | Open or Soldered |
Industrial-Grade 316L Stainless Steel Overbraided Mineral Insulated Thermocouple
For Mineral insulated (MI) thermocouples, the basic parts are measuring element, insulation, protecting sheath. At most situation, MI thermocouples matched with flexible connector to add bending possibilities and compensation cables to improve the measure accuracy.
Armor Style Thermocouple Structure
1. For the measuring wire, there are several common used type: Type K N E T J
2. Insulation Material: MgO(≥96%), Al2O3(≥99%)
3. Outer Sheath Material:
- 304L & 316L SS: + 700°C
- 310 (25/20) SS : + 1100°C
- Inconel 600 : + 1150°C
- GH3030 & GH3039: 1200°C
4. Mineral Insulated Parts Standards
|
Wire Diameter(D) And Tolerance |
Sheath Thickness(S) Mini Value |
Wire Diameter(C) Mini Value |
Insulation Thickness(I) Mini Value |
| 0.5±0.025 | 0.05 | 0.08 | 0.04 |
| 1.0±0.025 | 0.10 | 0.15 | 0.08 |
| 1.5±0.025 | 0.15 | 0.23 | 0.12 |
| 2.0±0.025 | 0.20 | 0.30 | 0.16 |
| 3.0±0.030 | 0.30 | 0.45 | 0.24 |
| 4.5±0.045 | 0.45 | 0.68 | 0.36 |
| 6.0±0.060 | 0.60 | 0.90 | 0.48 |
| 8.0±0.080 | 0.80 | 1.20 | 0.64 |
5. Connector:usually this part made by spring to increase bending possibilities.
6. Extension Cable:when chose the compensation/ Extension type, it should in line with the thermocouple index
In actual temperature measurement, usually there are long measuring distance with the measuring device, a thermocouple compensation wire is generated to compensate the temperature difference caused by the temperature change between the measuring device and the thermocouple connecting piece.
The compensation cable has the following advantages: improving thermocouple temperature measurement line physical properties and mechanical properties; improving the measurement line flexibility and making the connection convenient by using multi-strand core or small-diameter compensation wire; easy to shield external interference; reducing measuring lines cost.
Thermocouple Cable Grade
A:Extension Grade Cable
Whose wire composition is totally as the same as the thermocouple wire, remarked by the letter“X”after the thermocouple symbol number, such as“KX”“JX”“TX”
B:Compensation Grade Cable
Whose wire composition is different from the thermocouple wire, but its wire electromotive force (EMF) value is the same as thermocouple wire only at 0-100℃ or 0-200℃. It remarked by the letter“C”after the thermocouple symbol number, such as“KC”“JC”“TC”
