Class One 3mm K Type MI Cable Mineral Insulated Cable With SS316 Sheath
|
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 모델 번호: | 미 열전대 케이블 | 브랜드 이름: | Ohmalloy |
|---|---|---|---|
| 도체 재료: | Ni90Cr10/NiSi | 단열재: | MGO |
| 재킷: | N06600 | 애플리케이션: | 산업용 온도 테스트 |
| 색상: | 은 | MOQ: | 100미터 |

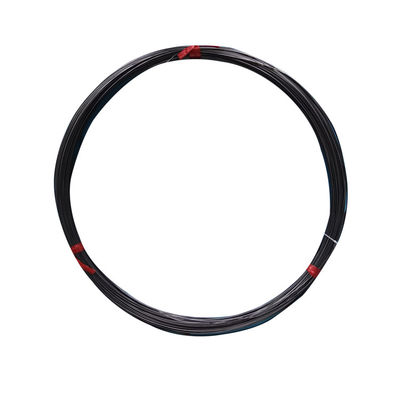

Class One 3mm K Type MI Cable Mineral Insulated Cable With SS316 Sheath
Mineral insulated metal sheathed thermocouple cable designed for industrial temperature measurement applications with high reliability and precision.
| Product Specification | Details |
|---|---|
| Product Name | Mineral insulated metal sheathed thermocouple cable |
| Type | K, J, T, E, R, etc |
| Insulation Material | 99.6% high purity MgO |
| Core Number | 2 wires, 3 wires, 4 wires, 6 wires |
| Sheath Materials | SS304, SS321, SS316L, SS310S, SS347, INCL600, ETC. |
| Diameter | From 0.25mm to 12.7mm |
| Application | Connecting with thermocouple and instrument machine |
Cable Structure
Custom made units as per exact requirements to meet specific industrial temperature measurement needs.
Technical Specifications
| Type | Designation | Thermocouple | Sheath Material | Diameter Range (mm) | Temperature Range (°C) |
|---|---|---|---|---|---|
| Ni Cr - Konstantan | EK | E | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Fe - Konstantan | JK | J | SS304 | 1.0 | 300 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Cu - Konstantan | TK | T | SS304 | 1.0 | -200-100 |
| SS321 | 1.5-3.2 | 100-200 |
Frequently Asked Questions
What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want. If we do not have, for spool wire, we can produce 1 spool (about 2-3kg). For coil wire, minimum 25kg.
How can you pay for small sample amount?
We accept wire transfer for sample amounts.
Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
What's our payment terms?
We can accept LC T/T payment terms, depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
