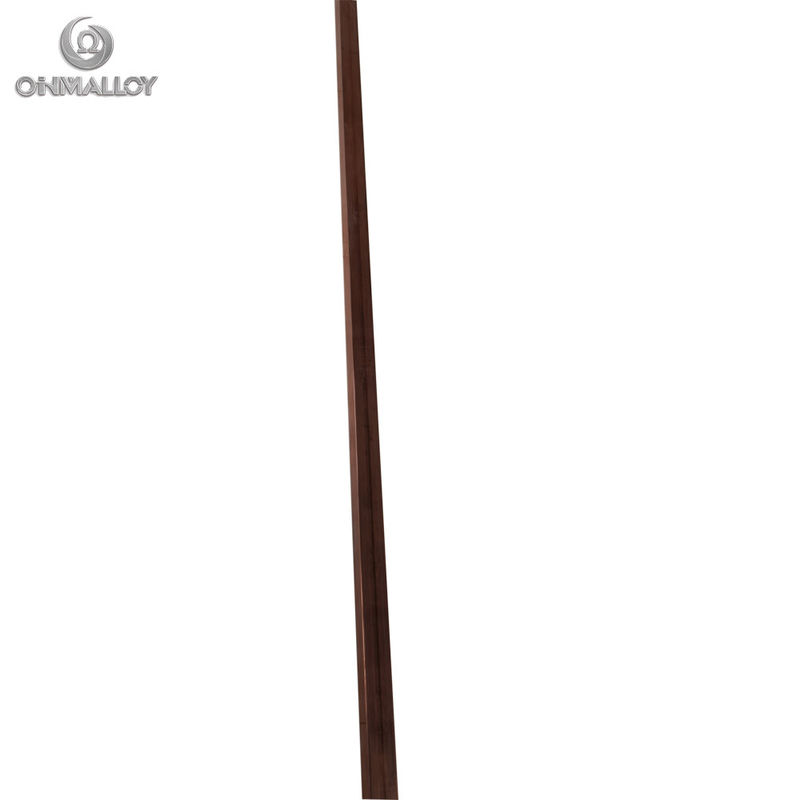

Electrode Material CuCr1Zr C18150 / 18200 / 15000 Chromium Zirconium Copper Alloys Rod
|
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 크기: | 20*20*1000mm | 도체 재료: | 구리 |
|---|---|---|---|
| 단열재: | 폴리이미드 | 애플리케이션: | 난방 |
| 도체 유형: | 좌초 | 모양: | 술집 |
Electrode Material CuCr1Zr C18150 / 18200 / 15000 Chromium Zirconium Copper Alloys Rod
Product brief introduction
CuCr1Zr – UNS.C18150 Chromium Zirconium Copper C18150 is an excellent and unique copper alloy with high electrical conductivity, hardness, and ductility, moderate strength, and excellent resistance to softening at elevated temperatures. The addition of 0.1% zirconium (Zr) and 1.0% chromium (Cr) to copper results in a heat treatable alloy which may be solution treated and subsequently aged to produce these desirable properties. Rod is usually supplied from the mill in the fully aged and drawn condition so no further heat treatment is required by the fabricator. The softening temperature of properly heat treated C18150 rod exceeds 500°C as compared to unalloyed pure copper which softens at 200°C, and silver bearing coppers which soften at 350°C.
Furthermore, many evidences shows that C18150 can provide less sticking and resisting deformation longer than its C18200 counterpart in some specific situatons.
Detailed Product Description
CuZr UNS.C15000
CuNi2CrSi UNS.C18000
CuCr1Zr UNS.C18150
CuCr UNS.C18200
Chemical Compositon
| UNS/DIN | DIN/EN | International specification | Chemical composition | Avaliable forms |
| C15000 | CuZr | 2.1580 CW120C |
Zr:0.15-0.20% Cu:balance Cu+Zr:99.5%min |
bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire. |
| C18000 | CuNi2CrSi | 2.0855 CW111C |
Cr:0.10-0.80% Ni:1.80-3.0% Si:0.40-0.8% Cu:balance Cu+Cr+Ni+Si:99.5%min |
bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire. |
| C18150 | CuCr1Zr | 2.196 CW106C |
Cr:0.50-1.50% Zr:0.05-0.25% Cu:balance Cu+Cr+Zr:99.5%min |
bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire. |
| C18200 | CuCr | 2.1291 CW105C |
Cr:0.60-1.20% Cu:balance Cu+Cr:99.5%min |
bar,round bar,flat bar,square bar,rectangular bar,hexagon bar,plate,round wire. |
Available Sizes:
Custom Diameter & Sizes, Random Mill lengths
Available Products (forms):
Round bars, Round strips, Round wires, Round tube,
Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils
Custom shapes are available upon request.
Typical Application
Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips
Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts
Industrial: Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows etc.
International Specification:
Rods/Bars/Tubes: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS4650,4651;
RWMA Class 4
Strips: ASTM B194, AMS4530,4532; SAE J461,463
Sheets: ASTM B194
Wires: ASTM B197, AMS4725, SAE J461,463
Plates: ASTM B194, SAE J461,463; AMS4530,4533,4534,AMS4650,4651; RWMA Class 4.
