ASTM B166 Inconel 600 Wire 0.1mm (UNS N06600) | Nuclear-Grade Braidin
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 모양: | 철사 | 애플리케이션: | 용접 |
|---|---|---|---|
| 화학 성분: | Cr, Ni, Fe 등 | 색상: | 밝은 |
| 표면: | 밝은 & 부드러운 | 상태: | 어닐링 |
| 녹는 점: | 1380~1400 Ｃ | 인증: | ISO9001,RoHS |
| 밀도: | 8.4g/cm3 |

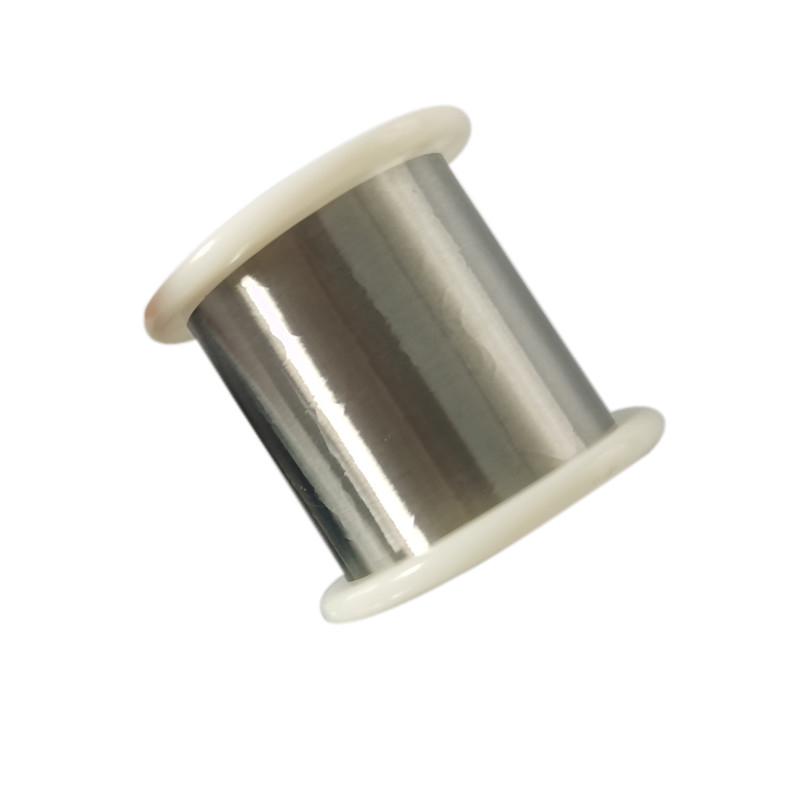

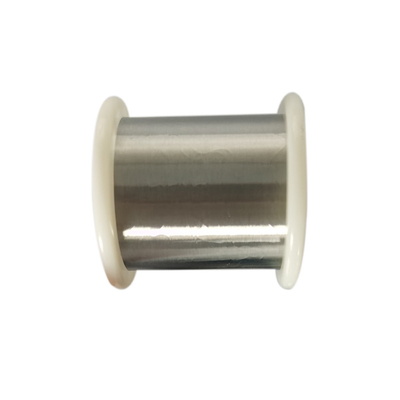

ASTM B166 Inconel 600 Ultra-Fine Wire 0.1mm (UNS N06600) | Nuclear-Grade Braiding for High-Temperature Gland Packings & Seals
1.Description
It is face-centered cubic lattice structure for use at temperature up to 1425°C (2600°F). The Nickel-Chromium alloy is characterized by good corrosion resistance in the reduction condition, alkaline solution, inorganic acid and good resistance to oxidation at high temperatures.
Chemical Content (%)
| Alloy | % | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
|
Inconel 600 |
Min. | 72 | 14 | 6 | ||||||
| Max. | 17 | 10 | 0.15 | 1 | 0.5 | 0.5 | 0.015 | 0.015 |
Mechanical Properties
| Alloy status | Tensile strength Rm N/mm² |
Yield strength R P 0.2N/mm² |
Elongation A 5 % |
Brinell hardness HB |
Density g/cm³ |
Melting Point °C |
| Annealing treatment |
550 | 240 | 30 | ≤195 | 8.4 | 1370-1425 |
| Annealing treatment |
500 | 180 | 35 | ≤185 | 8.4 | 1370-1425 |
2.Features
Good corrosion resistance to the reduction, oxidation, Nitric and other media, good stress corrosion cracking resistance, good corrosion resistance of the dry chlorine and chlorine hydride, good mechanical property when below zero, room temperature and high temperature, good anti-creep rupture strength.
3.Usage
It widely used in following field:
1)Furnace components: heat treatment furnace flask and components.
2)Chemical processing: vinyl chloride monomer production, oxide shaft chloride converted to six fluoride, corrosive alkali metal produce and usage filed, use chlorine produce titanium dioxide, organic or inorganic chlorine produce.
3)Food processing.
4)Nuclear engineering: nuclear reactor.
5)Petrochemical works production of catalytic regeneration.
4.Specification
Round Wire:0.03mm~10mm
Flat Wire (Ribbon): thickness 0.1mm~1.0mm, width 0.5mm~5.0mm
Strip: thickness 0.2mm~3.0mm, width 0.5mm~200mm
Other sizes are available upon your request.
5.Grade Contrast
ASTM (American Society for Testing and Materials): UNS N06600
DIN (Deutsche Industrie Normen): W.Nr.2.4816, NiCrl 5Fe
BS (British Standards):NA14
6.Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery.
