1.5*50mm Alloy 835 Strip FeCrAlNb21/6 Strip for Industrial Electric Furnace Resistance 145
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 화학 성분: | 21%Cr 6%Al 잔부 Fe 및 Nb | 치수: | 0.02-10mm |
|---|---|---|---|
| 재료: | 합금 | 모양: | 철사 |
| 애플리케이션: | 산업 및 가전제품 | 저항률(μΩ.m): | 1.45 |
| 인장 강도(≥ MPa): | 725 | 신장 (≥ %): | 22 |
| 힘 (≥ MPa)를 만드세요: | 550 | 밀도 (G/CM3): | 7.10 |
| 작업 온도 (℃): | 1350 | 표면 처리: | 산화 |

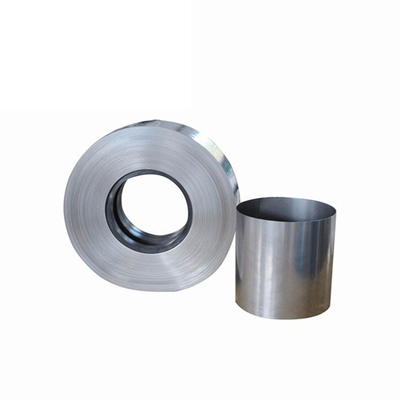

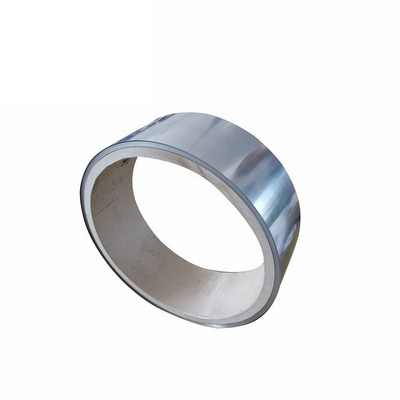

1.5*50mm Alloy 835 Strip FeCrAlNb21/6 Strip for Industrial Electric Furnace Resistance 145
OhmAlloy145:
Common Name: 0Cr21Al6Nb, A, Alloy 835
OhmAlloy145 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.
Typical applications for OhmAlloy145 are used in industrial electric furnace, household electrical appliance and far infrared ray device.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.06 | 0.025 | 0.025 | 0.70 | Max 1.0 | 19.0~22.0 | Max 0.60 | 5.0~7.0 | Bal. | Nb0.5 |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 550 | 725 | 22 |
Typical Physical properties
| Density (g/cm3) | 7.10 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.45 |
| Conductivity coefficient at 20℃ (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 16 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.49 |
| Melting point (℃) | 1510 |
| Max continuous operating temperature in air (℃) | 1350 |
| Magnetic properties | non-magnetic |
Temperature Factor of Electrical Resistivity
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1200℃ | 1300℃ |
| 1 | 1.000 | 1.002 | 1.006 | 1.011 | 1.020 | 1.037 | 1.046 | 1.049 | 1.052 | 1.055 | 1.058 | - |
Style of supply
| Alloys Name | Type | Dimension | ||
| OhmAlloy142AW | Wire | D=0.03mm~8mm | ||
| OhmAlloy142AR | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| OhmAlloy142AS | Strip | W=8~250mm | T=0.1~3.0 | |
| OhmAlloy142AF | Foil | W=6~120mm | T=0.003~0.1 | |
| OhmAlloy142AB | Bar | Dia=8~100mm | L=50~1000 | |
