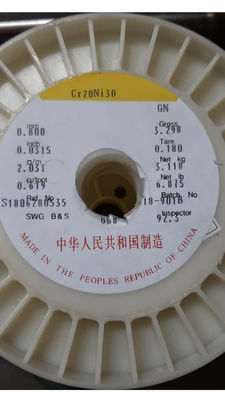

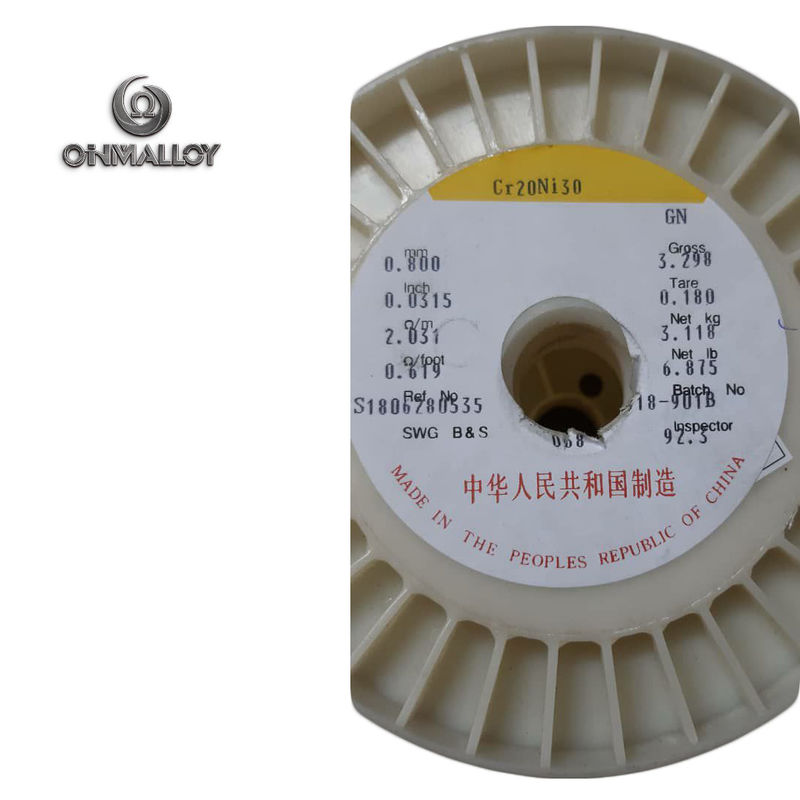

0.8 밀리미터 NiCr3020wire ISA-CHROM30은 밀봉기를 위해 Ni30Cr20 저항선을 배선합니다
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 화학 성분: | 30%Ni 20%Cr 밸런스 철 | 지름: | 0.8 밀리미터 |
|---|---|---|---|
| 재료: | 불순물 | 형태: | 철사 |
| 애플리케이션: | 기업과 가정용 전기 제품 | 저항력 (μΩ.m): | 1.04 |
| 장력 강도 (≥ MPa): | 675 | 신장 (≥ %): | 20 |
| 항복 강도 (≥ MPa): | 340 | 조밀도 (g/cm3): | 7.9 |
| 작동 온도 (℃): | 1100년 | OEM: | 이용 가능합니다 |
| 어닐링 처리: | 수소 어닐링 | 표면 처리: | 밝은 |
| 증명서: | SGS, ISO | ||
| 강조하다: | 0.8 밀리미터 NiCr3020 wire,Ni30Cr20 ISA-CHROM30 Wire,104B NiCr3020은 전보를 칩니다 |
||

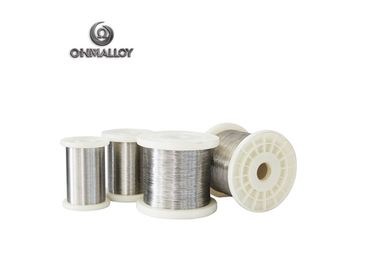

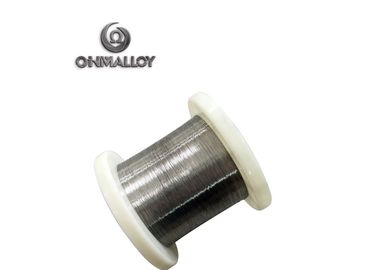

0.8mm NiCr3020wire ISA-CHROM30 wire Ni30Cr20 resistance wire for sealer
Ohmalloy104B
(Common Name: Ni30Cr20,Nikrothal 30, N3, HAI-NiCr 30, Resistohm 30,30-20 Ni-Cr,Nikrothal 3.)
OhmAlloy104B is a nickel-chromium alloy (NiCr alloy) characterized by High resistivity, good oxidation resistance,very good form stability,good ductility and excellent weldability. It is suitable for use at temperatures up to 1100°C.
Typical applications for OhmAlloy104B are used in olid hot plates,open coil heaters in HVAC systems,night-storage heaters,convection heaters,heavy duty rheostats and fan heaters. And also used for heating cables and rope heaters in defrosting and de-icing elements,electric blankets and pads, car seats,baseboard heaters,floor heaters and resistors.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 1.00 | 1.0~2.0 | 18.0~21.0 | 30.0~34.0 | - | Bal. | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 340 | 675 | 35 |
Typical Physical properties
| Density (g/cm3) | 7.9 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.04 |
| Conductivity coefficient at 20℃ (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 19 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.50 |
| Melting point (℃) | 1390 |
| Max continuous operating temperature in air (℃) | 1100 |
| Magnetic properties | non-magnetic |
Temperature Factors Of Electrical Resistivity
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ |
| 1 | 1.023 | 1.052 | 1.079 | 1.103 | 1.125 | 1.141 |
| 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1200℃ | 1300℃ |
| 1.158 | 1.173 | 1.187 | 1.201 | 1.214 | 1.226 | - |
Style of supply
| Alloys Name | Type | Dimension | ||
| OhmAlloy104BW | Wire | D=0.03mm~8mm | ||
| OhmAlloy104BR | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| OhmAlloy104BS | Strip | W=8~250mm | T=0.1~3.0 | |
| OhmAlloy104BF | Foil | W=6~120mm | T=0.003~0.1 | |
| OhmAlloy104BB | Bar | Dia=8~100mm | L=50~1000 | |
